Dissolvable Frac Plugs Fangio Line | Silver Arrow

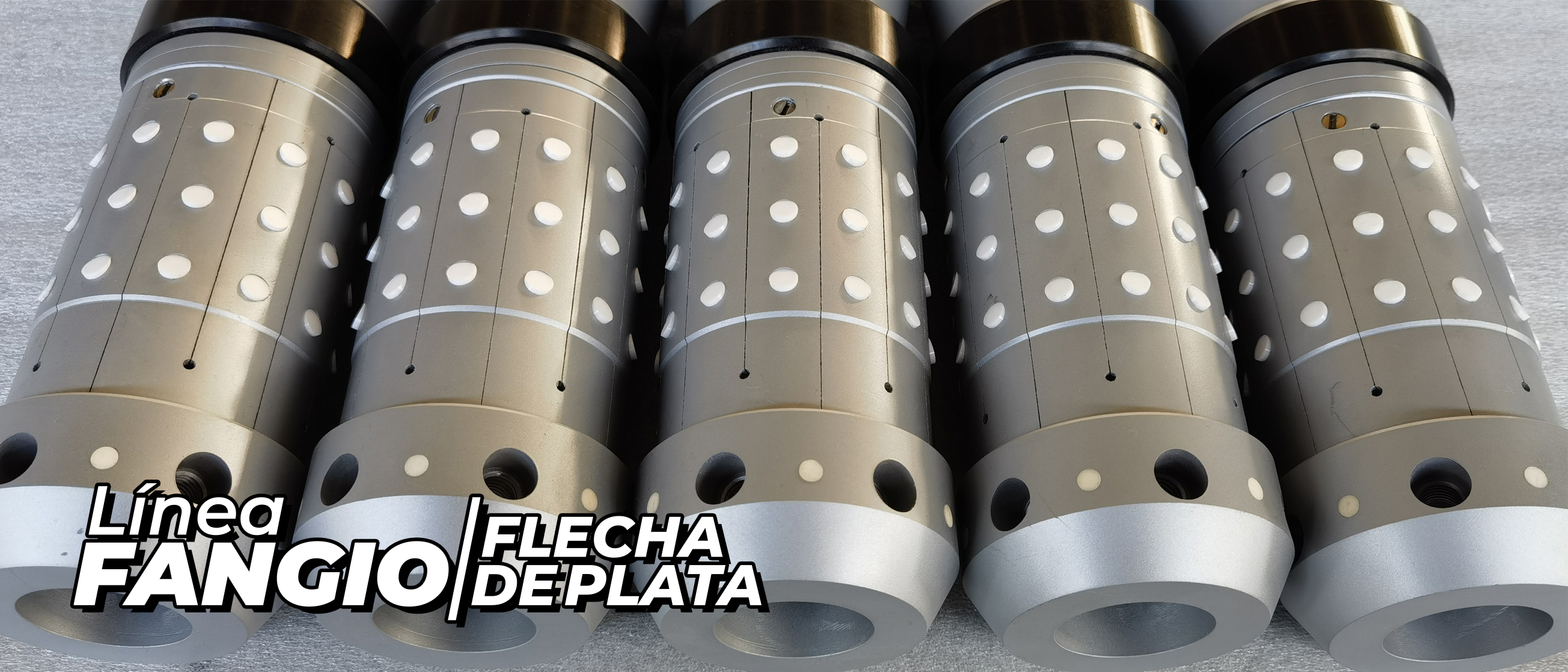

Dissolvable Frac Plug - Single Slip

Our plugs are manufactured to order and designed based upon the characteristics of each well- specifically chloride ion content, temperature, pressure, and working time.

Features

• Large bore ID, 50%-80% larger than conventional.
• Small dissolvable element, 90% smaller than conventional.
• Compact design with anti-presetting feature.
• Shorter length allowed to be run in deformed casing.
• Small in size for quicker dissolution and less debris.

Operation Conditions

• Casing Diameter: 3.5–5.5"
• Temperature: 30–180°C
• Salinity: 100–40,000 ppm
• Acidic environments (corrosion resistance testing required)
• High pressure and temperature conditions
• Static time before fracture: 12–18 hours
• Recommended pumping rate: 1.5–3 m³/min (max. 4 m³/min)
• Dissolution time: Begins after 24 hours
• Compatibility: Compatible with Baker installation tools (no adapter required)

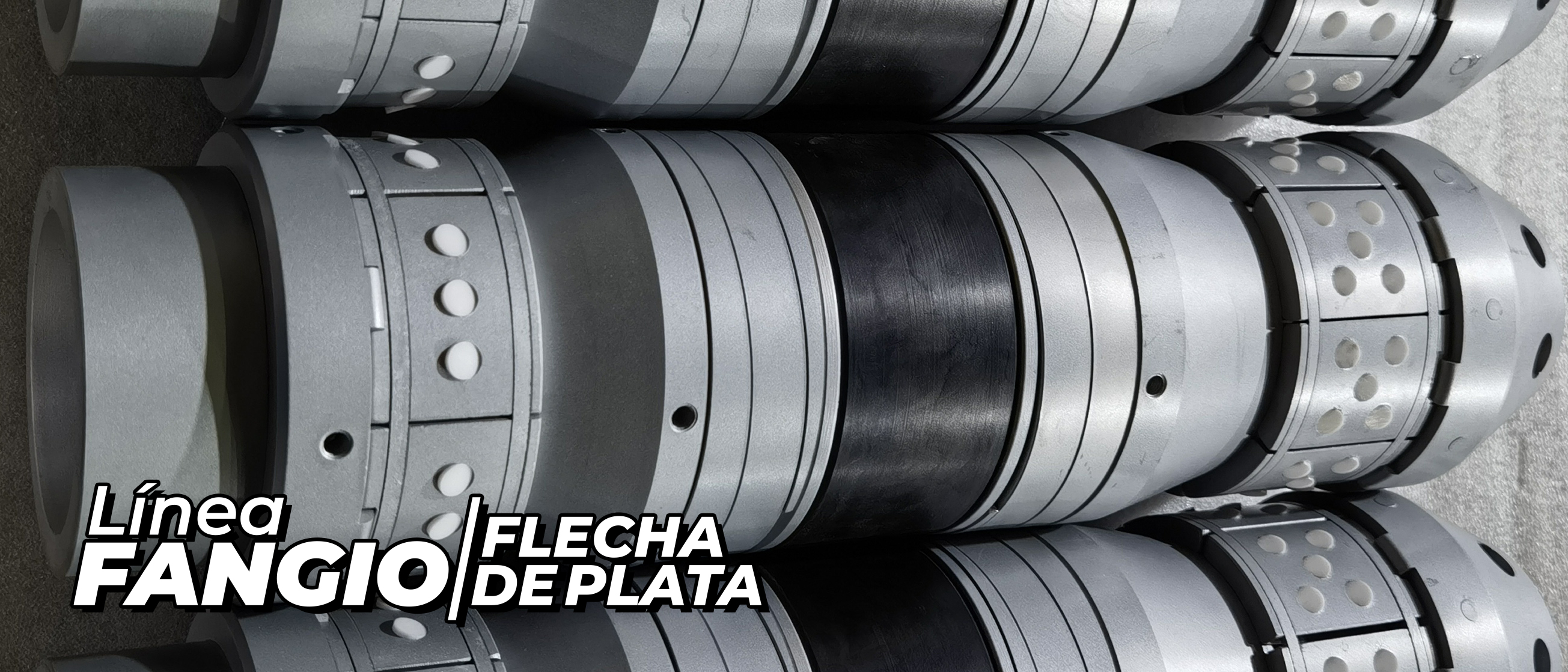

Dual-Slip Fully Dissolvable Frac Plug

The dual-slip fully dissolvable bridge plug is designed for temporary sealing during staged fracturing of oil and gas wells, and it can rapidly dissolve in well fluids after its use.

Features

• Simple structure and stable performance.
• The body, sealing rubber sleeve, slips, and sealing balls are all dissolvable.
• Saves construction time and effectively reduces the development cost of oil and gas wells.
• Suitable for different well depths, no drilling or grinding is required after construction.
• Dissolution time can be set according to customer requirements.

Technical Specifications

• Casing Size: 5 in, 21.4 lb/ft ~ 24.1 lb/ft
• Corresponding Casing ID: φ101.6 mm ~ φ104.8 mm
• Dissolution Medium: Fresh water or high mineralization medium
• Main Body Material: Magnesium alloy
• Sealing Material: Dissolvable rubber
• Outer Diameter: Φ93 mm (3.661 in)
• Inner Diameter: Φ35 mm (1.378 in)
• Overall Length: 400 mm (15.75 in)
• Dissolvable Ball: Φ50 mm (2 in)
• Pressure Rating: 70 MPa (10,000 psi)
• Temperature Rating: 150 ºC (302 °F)

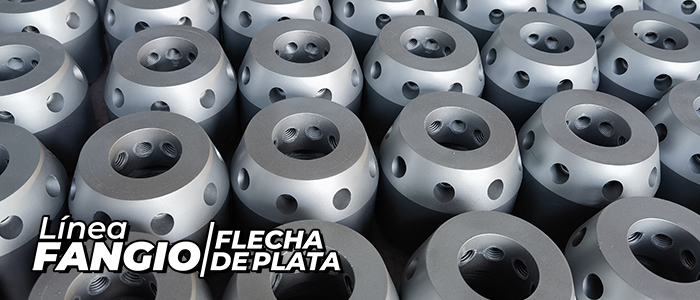

Slim Dissolvable Frac Plug

Fracture plug made of 100% soluble alloy, designed for completion operations in diameter-restricted wells.

Its compact desing allows for efficient installation without the need for subsequent recovery, as it dissolves under controlled conditions.

We can supply casing plugs with deformation with 88mm OD, applicable to casing from 5" - 21.4mm to 5.5" - 23mm and pressure rating of 7250 PSI.

Technical Specifications

• Part Nº: FPS-5-21.4-88-50-120-7.25Ksi
• Min. ID: 1.969" (50mm）
• Temperature Rating: 248-356°F (120-180℃）
• Length: 12.48" (317mm)
• Holding Pressure Up to: 24 hrs.
• Downflow velocity: 1.5-3 (m³/min
• Ball Size: 2.5" (63.5mm）

Technical Specifications

• Maximum OD: 3,740" - 95 mm
• Minimun OD: 1,57" - 40 mm
• Ball Size: 2,00" - 50.8 mm
• Overall Length: 9,37" - 238 mm
• Temperature Range: 248-300 ºF - 120-150 ºC
• Pressure Rating for V6-R, V6, V5-R & V5: 69 Mpa
• Setting Tool: Baker#10

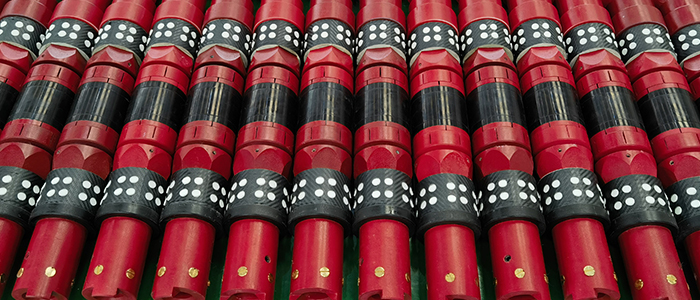

Composite Frac Plug

• Withstands high pressures and temperatures
• Strong gripping force without slippage
• Composite construction mills out rapidly
• Minimal debris for easy cleanup
• Meets or exceeds APl /lS0 standards
• Enables faster multistage operations

Features

• Available in 3-1/2",4",4-1/2",5",5-1/2"& 7"
• Consistent drill times of 5-15 minutes or less
• The setting sleeve and shear adapter are designed to run on any wireline setting tool or tubing-run hydraulic setting tool, with Baker #10,and Baker #20 connections
• Can be drilled out using conventional rigid tubing or coiled

Applications

• Plug-and-perf operations in Multistage fracturing in horizontal wells
• Zonal isolation for production
• Horizontal, deviated and vertical well bores
• High pressure/high temperature environments
